DBX TR1616

Mã SP: | Lượt xem: 12 lượt

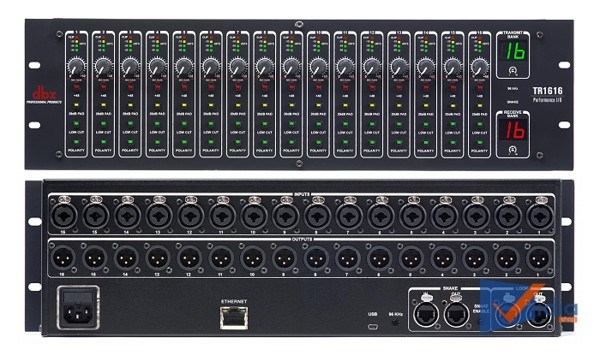

Performance I/O 16 in/16 out analog to BLU link to analog audio interface

Kho hàng: Còn hàng

Bảo hành: 0

Giao hàng: Phí giao hàng và cài đặt : 30.000 VNĐ (Trong phạm vi 8km).

Khuyến mại:

44.820.000

Số lượng

Bạn cần mua bán sửa chữa bảo hành hãy gọi ngay vào Hotline để được tư vấn trực tiếp về sản phẩm

Ms. Thu Hoa

0949.51.3333

Mr. Thái

0975.39.3333

Mr. Vinh

0942.17.3333

Thông số sản phẩm

Number of Inputs : 16
Connectors : Combination Female XLR and 1/4" Jack
Type : Electronically balanced, RF filtered
Impedance : XLR input: 3 kΩ
1/4" input: 20 kΩ balanced, 10 kΩ unbalanced
Maximum Input Level : XLR Input: 18 dBu at minimum gain
1/4" Input: 33 dBu at minimum gain
Gain : XLR Input: 0 to 60 dB
1/4" Input: -15 to 45 dB
EIN : -125 dBu, 22 Hz to 22 kHz, 150 Ω source impedance
CMRR : > 40 dB, typically 55 dB, 22 Hz to 22 kHz
Dynamic Range : 110 dB unweighted, 113 dB A-weighted
Frequency Response : 10 Hz to 40 kHz, +/- 0.25 dB at 96 kHz 10 Hz to 20 kHz, +/- 0.25 dB at 48 kHz
THD + N : Typically 0.002% at 1 kHz, 0 dBu XLR input, gain set to minimum
Crosstalk : Interchannel: < 100 dB, 22 Hz to 22 kHz
Latency : ADC: 37/Fs (0.77 ms at 48 kHz)
Phantom Power : 48 VDC, applied to XLR pins 2 and 3 through 6.81 kΩ resistors
Pad : 20 dB
Low Cut Filters : 2-pole Butterworth filter at 80 Hz
Polarity : Normal or reverse
Dimensions (H x W x D) : 5.25 x 19.00 x 6.25" (133.40 x 482.60 x 158.80 mm)
Weight : 9.6 lb (4.4 kg)

Number of Inputs : 16
Connectors : Combination Female XLR and 1/4" Jack
Type : Electronically balanced, RF filtered
Impedance : XLR input: 3 kΩ
1/4" input: 20 kΩ balanced, 10 kΩ unbalanced
Maximum Input Level : XLR Input: 18 dBu at minimum gain
1/4" Input: 33 dBu at minimum gain
Gain : XLR Input: 0 to 60 dB
1/4" Input: -15 to 45 dB
EIN : -125 dBu, 22 Hz to 22 kHz, 150 Ω source impedance
CMRR : > 40 dB, typically 55 dB, 22 Hz to 22 kHz
Dynamic Range : 110 dB unweighted, 113 dB A-weighted
Frequency Response : 10 Hz to 40 kHz, +/- 0.25 dB at 96 kHz 10 Hz to 20 kHz, +/- 0.25 dB at 48 kHz
THD + N : Typically 0.002% at 1 kHz, 0 dBu XLR input, gain set to minimum
Crosstalk : Interchannel: < 100 dB, 22 Hz to 22 kHz
Latency : ADC: 37/Fs (0.77 ms at 48 kHz)
Phantom Power : 48 VDC, applied to XLR pins 2 and 3 through 6.81 kΩ resistors
Pad : 20 dB
Low Cut Filters : 2-pole Butterworth filter at 80 Hz
Polarity : Normal or reverse
Dimensions (H x W x D) : 5.25 x 19.00 x 6.25" (133.40 x 482.60 x 158.80 mm)
Weight : 9.6 lb (4.4 kg)
